Power up and Mix

Power Star Mini -

Portable Power Distribution Solution for Field Recording Devices

The new PSC Power Star Mini power distribution system provides a convenient way of distributing clean, quiet, reliable 12Vdc to all of your ENG audio equipment from a single rechargeable battery. The PSC Power Star Mini features six outputs. Each of these outputs is designed to deliver up to 3 amps of continuous current. The Power Star Mini has a global (total) current limit of 5 amps. A top panel mounted lighted power switch controls the entire operation. This power switch always controls five of the six output power connectors. The sixth connector may be controlled by this power switch or left un-switched (always on). This sixth connector is conveniently marked with a blue ring surrounding the connector. Internally, there is a small jumper to select switched or un-switched operation for this connector.

Features of the PSC Power Star Mini:

Superior RF Filtering

Polyfuse Indicating LEDs

Made in the U.S.A.

Power Star-

Portable Power Distribution Solution for Soundcart/ 1U Rack Mount

The PSC Power Star distribution system provides a convenient way of distributing clean, quiet, reliable 12Vdc to all of your audio equipment from a single rechargeable battery. The PSC Power Star features a built in 12Vdc, 15 Amp AC power supply and battery charger that can be operated world-wide without adjustment. The Power Star features 10 outputs. Two of these outputs are designed to deliver up to 8 amps of continuous current draw and the remaining eight outputs are all rated for 3.5 amps current draw. Up to 24 amps of power may be used from a rechargeable battery.

http://www.professionalsound.com/products/pwr.htm

DVPromix6

6 channel Portable Field Recording Mixer

 Professional Sound Corporation®'s ProMix 6 portable audio mixer offers the greatest performance to price ratio of any ENG style mixer in the industry. Perfect for ENG, EFP and reality television production, this six-channel mixer is designed to provide all of the necessary functions required in today’s production environment. Super quiet pre-amplifiers, true dual camera support, bright, sun-light readable peak program meters, dedicated individual line outputs and ergonomic fader knobs are just a few of the features provided. Each input includes: State of the art, supper low noise pre-amplifiers, two position low cut filters, three-way channel assignment switches (pan switches) and handy pre-fade listen switches.



The ProMix 6 also features a reference tone oscillator, slate microphone, switchable output levels and custom made, properly sized, dual output transformers. In addition, the ProMix 6 includes a ganging input so two mixers can be connected together for those really complex jobs. The ProMix 6 comes complete with a custom-made field bag and padded shoulder strap.

Distributing for Singapore- Malaysia - Philippines

Year End Highlights

Lectrosonics QuadPack will be available in Nov together with SRA/5p Dual Channel Diversity Receiver.




Quadpack - Designed for portable field production, the Quadpack simplifies the mounting and interconnection of two SRa Series compact receivers. Lightweight and rugged, it is perfectly at home in bag systems containing mixer, recorder and wireless transmitters used for audio feed to cameras. One set of audio outputs is used to feed the recorder and the other set to feed wireless transmitters.


Power is taken from an external DC source via one or both connectors. Circuitry is employed between the two jacks that takes power from the source with the higher voltage. This can be used to provide a backup power supply where the DC is automatically taken from the opposite jack if power is interrupted at one of them.


Lectrosonics wireless is definitely not new to local field recordists, schools,TV station, system integrators & local wireless microphone distributors.

A name, which most recordists will rely on when it comes to serious production work.

Never too late to choose Lectrosonics products, even if it is in the middle of your shoot.
When you face issues with some other wireless system setups, contact our local dealer and we will work together to solve your wireless issues as soon as we could to save unnecessary costs incurred.
We work 24hours a day to solve problems.

Visit: http://www.lectrosonics.com/index.htm

Download 2010/2011 Full line catalogue: 2010/2011 Lectrosonics MasterCatalogue

http://www.cadaudio.com/e100s.php

Engineered and built in the USA, the new E100S large diaphragm supercardioid condenser has the lowest noise floor in its class (3.7 dBA) and the smooth, vintage tone and robust low end CAD is known for. The bootstrapped, full differential Quadra-FET ™ front end delivers high sensitivity and low distortion, plus CAD’s proprietary circuitry ensures the highest performance. The nickel plated 1 inch capsule delivers accurate phasing on instruments, and a full rich vocal tone, accentuated by the extended low frequency response. Features include an 80Hz hi-pass filter and a 10dB pad. From vocals to percussion, acoustic instruments and everything in between, the CAD Equitek E100S will prove to be one of the most versatile tools in your microphone locker, in the studio or on stage. Vintage woodgrain cherry case and stealth shock mount included. 48V Phantom power is required.

Next shipment: Mid November 2010

email us and we will direct you to our local reseller.

Whatz arriving in Oct

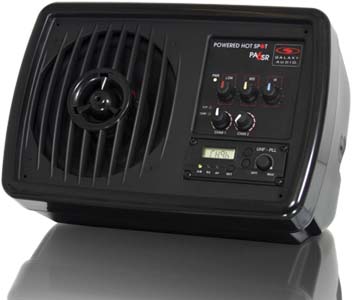

 Galaxy Audio PA6sR will be HERE in Singapore
ULTRA HIGH POWER ONE-PIECE PA SYSTEM/POWERED MONITOR
http://www.galaxyaudio.com/index.jsp

Great Features

The new PA6SR includes a wireless receiver and a convenient mic stand insert on the bottom of the unit. This allows a quick setup on top of a mic stand, with the PA6SR angled upward for accurate vocal monitoring.

The included mic stand adaptor insures a more stable and secure placement on any mic stand.

Molded-in yoke bracket points. With the optional yoke bracket assembly the PA6SR can be mounted to
a wall or ceiling, or attached to a mic stand and angled in any direction.

Microphone boom mount on top of the PA6SR eliminates the need for a second mic stand for your
microphone. (Requires optional hardware).

Integrated handle into the top of the enclosure.

Built in Compressor/Limiter prevents output distortion.

-20dB pad switches on each XLR input allow high-level signals without distortion.

3 band EQ (High, Mid, Low) to adjust the sound to what you want to hear.

Pass through on each channel acts as a built in splitter to send signals to a mixer snake or another PA6S.

Two way speaker system: 6.5" neodymium high power woofer and 1.5" high efficiency Neolite tweeter

allows for wider frequency response.

170 watt Class D amplifier.

Light weight: Innovative speaker and amplifier designs actually allowed us to reduce the weight of

the PA6SR from its predecessors, while improving the performance.

  Choice of transmitters

SPEAKER SECTION


Woofer: One Galaxy Audio SW6.5 ferro fluid cooled 6.5" NEOLITE Neodymium Woofer
weeter: One ST1.5 fluid cooled 1.5" NEOLITE Neodymium Titanium Dome Tweeter
Nominal impedance: 4 ohms
Power handling capacity: 170 watts


ENCLOSURE
Enclosure Materials: Fire retardant styrene
Color: Black
Dimensions: 7.75" x 11.75" x 6.75" (197 mm x 298 mm x 171 mm)
Net weight: 6.4 lbs. (2.9 kg)


Adjustable frequency: Pre-programmed max. 96 switchable channels





HA540 Pure Class A Headphone Amplifier

The Bellari HA540 is a audiophile grade headphone amplifier. The all class A signal path ensures smooth clean analog audio. The 0 feedback design means smooth natural analog response. It features 2 input paths and high gain for MP3 players, ipod, etc and a low gain path from audio selectors, mixers, satellite receivers, etc.. It also features direct into the tube grid coupling for no loss or distortion.

The unit is included with a universal powersupply for use most anywhere in the world.

Made in USA



   Radial Engineering Pro48 Actve DI Box

The Radial Pro48 is a high-performance 48V phantom powered active direct box designed specifically for today's higher output instruments.

The Pro48's inovative digital switching power supply significantly increases headroom and allows for less distortion while yielding a smooth, linear response extending from 20Hz to well above 100kHz resulting in natural, uncolored signal transfer. This superior performance makes the Pro48 an ideal candidate for use with today's battery powered active basses and acoustic guitars that tend to overload other direct boxes.

The compact Pro48 is built road-ready with 14 gauge steel in our unique book-end™ design that provides protective zones around the switches and connectors. The internal welded I-beam construction assures outside stress will not torque the PC board thus assuring longer product life.

Exceptional sonic performance, great natural tone at an affordable price; the Radial Pro48 truly represents a breakthrough in value!

The Radial Pro48… Blue is True!
http://www.radialeng.com/re-pro48.htm

Radial Engineering Pro48

September Best Selling DI will be in stock again!!

Trion 8000 Tube Condenser Microphone

http://www.cadaudio.com/Trion8000.php

Accurate sound reproduction, high SPL capability and warm tube performance make this an excellent choice for the recording professional

The Trion 8000 is a multi-pattern, externally biased, large dual diaphragm studio tube condenser microphone.

The Trion 8000 incorporates a sophisticated, precision-machined, hand-assembled capsule. The low mass 1.12” gold vapor deposited, hand dampened diaphragms offer the warm, rich and open classic tube sound ideal for studio vocal recordings in the digital realm.

Exceptional sensitivity, low distortion and an extended frequency response make the Trion 8000 an outstanding performer.

Discrete Class A electronics provide transparent, accurate sound reproduction. The transformer-coupled output ensures excellent RF immunity, cancellation of cable capacitance, and rejection of induced line noise.

A 3-position polar pattern switch provides selection of omnidirectional, cardioid or figure-8 polar patterns for versatility and flexibility demanded in the professional recording environment.

The rugged metal housing and construction provide the durability required to withstand the harsh day-to-day demands of both live and studio applications. Featuring a heritage design, the Trion 8000 offers an aesthetically pleasing industrial profile.

Accurate sound reproduction, high SPL capability and warm tube performance make this an excellent choice for the recording professional.

Includes: Shockmount, heavy-duty aluminum carrying case, 25ft 6-pin connector cable, and power supply are included. 115/230 VAC power required.

Note: CAD Audio Trion8000 will be in stock again by Oct 2010

Promotion is on from Oct - Dec 2010 on selected CAD Audio Microphones and accessories

email our local Exclusive dealer: sales@hungbros.com for pricings and stock availability.

Best Selling Studio Condenser Microphone!!!

CAD Audio GXL3000

Studio Condenser Microphone, Multi-pattern,1" Gold Vapor Diaphragm

http://www.cadaudio.com/GXL3000.php

CAD GXL3000 Multi-pattern Condenser Microphone

Borne of precious metal and pure electricity. Tune two golden membranes intimately across polished bass and inject electrons with oscillatory high tension. Drive emotion across copper and iron by field-effect detection. Wrap it in Faraday's cage to conceive the GXL3000. Live all three polar patterns as you align space and tone. Features include hi-pass filter and attenuator. Elastic shock mount and protective pouch are included. P48 (48V) phantom power is required.

Applications
Studio Vocals,
Voice-over
Choir
Acoustic Instrument
Guitar Cabinets
Bass Cabinets
Piano


CAD GXL3000 Specifications
Operating Principle: Externally-biased condenser
Polar Pattern: Cardioid, figure-of-eight, omnidirectional
Frequency Response: 35Hz to 20KHz
Sensitivity: -38dBV (13mV) @ 1 Pa
Impedance: 200 ohms
Max SPL: 135dB, 1% THD, attenuator engaged
Self Noise: 20dBA
Hi-pass Filter: 100Hz, 6dB/oct
Attenuator: 10dB

Power Requirements: P48, 4mA

Primacoustic Voxguard

Our best selling recording accessories in Aug - Sep 2010

Primacoustic Voxguard

 "Over 10,000 units sold worldwide since April 2010"

Our 3rd shipment will be arriving in October 2010

Sold to home recordists, voice talents, private studios, broadcast studios and schools.

http://www.primacoustic.com/voxguard-specs.htm

Oktava Microphones Singapore Distribution

Oktava, during the many years, is the biggest electro-acoustic transducer manufacturer in Russia, which mass-produces electro-acoustic transformers and different types of equipment (micro-phones, telephones, fittings, subminiature transformers and so on). With the support of leading Russian research centers as well as their own research laboratory, the factory has great technologi-cal potential, that allows them to produce high-quality professional microphones.


Today Oktava microphones are sold in the United States and Europe, in Asia and Australia.

Now you can purchase Oktava microphones in Singapore.

For product inquiries, please email to us @ audiobridge@yahoo.com.sg

What we have for you now;

 MK-011 Medium Diaphrgm Handheld Condenser Microphone ( Silver & Black)

Designed for recording studios and reinforcement at motion picture and TV studios, radio studios and during theater and entertainment events.


Incorporating MK-012 preamp and new middle diaphragm capsule in a dynamic-type housing with great windscreen, this mic has a high-rejection sensitivity pattern and a free, unrestricted sound typical of high-end, wide, cardioid condenser mics.

MK-012-01 MSP2 ( Silver & Black)

Match pair Small Diaphrgm Condenser Microphones (2 x Cardioid Capsules)

MK-012 Match Pair MSP6 ( Sliver & Black)

with 2 x Cardioid, 2 x Omni & 2 x Supercardioid capsules

 MK-102 MSP Large Diaphrgm Condenser Microphone ( Silver & Black)

The second mic in the Oktava “100 Series” was introduced in 2005. The MK-102 features a small physical profile and flat, extended frequency response – qualities not typically found together in large diaphragm mics.

The Capsule
The MK-102 features a large 27.5 mm condenser capsule using all-brass backplate construction, precision-drilled pattern control holes and optimal 5 micron diaphragm for classic LDC microphone presence on vocals or instruments.

Capsule Housing & Body
A close-fitting housing surrounds the capsule and allows the front diaphragm to function in free-air without internal headbasket reflections. In addition, the MK-102’s unique capsule and body orientation reduces reflections between the microphone and the sound source. The MK-102 body disappears completely behind the capsule head when the mic is aimed at the sound source. This leaves only the capsule diaphragm exposed to the sound source for minimal reflections and clear-sounding recordings.

The MK-102 uses the same transformerless circuit found in the renowned MK-012 (over 90,000 in use worldwide) to deliver the alluring sound of direct phantom power applied to a large diaphragm capsule.

The Sound

On-axis - The MK-102 offers a smooth and extended frequency response with clean and accurate top end free from the harsh, excessively bright sound found in many modern microphones. Off-axis - Frequency response from 90 through 180 degrees closely resembles the on-axis sound and the attenuation of sound over this angular range is exceptionally smooth.

The MK-102 excels where the recordist desires a large diaphragm cardioid condenser mic with a flat frequency response that is maintained from 0 to 180 degrees to achieve a natural room sound spectral balance.

ML-52-01 Ribbon Microphone for Studio Recording



ML-52-01 comes with a ring mount and hard case

ML-52-01 mounted on Spider Shock mount ( Optional)

The ML-52-01 is a brand new improved version of Oktava’s famous ML-52 with a greatly improved windscreen, which protect a very sensitive filament from blast and moisture much better. Moreover it has an additional roll-of in low frequencies which compensates for the unavoidable bass boost that occurs with all pressure gradient transducers when they are used at close distance (proximity effect).

The stunning looks of this microphone combined with the classic sound of the double ribbon filament and the reliability expected of today's modern equipment make this a very desirable microphone.

The Oktava ML52 is suitable for use in any situation where a warm and rounded sound is required, The ribbon sound lending it an air of nostalgia whilst competing with modern condenser designs in terms of frequency response. The virtually non existent noise floor means that, used in conjunction with a good pre-amp. it is an ideal mic for digital recording.

As a true cosine or figure of eight microphone the ML52 has many advantages and uses in broadcast and installation due to the negligible sound it picks up from the sides, as well as 90 degree stereo recording. The figure of eight pattern is almost completely uniform at all frequencies.

The ML52 is eminently suited to string and brass instruments giving a sparkling but never harsh overall sound and also gives a particularly pleasing smooth sound to vocals.

We will have more products coming in shortly.
